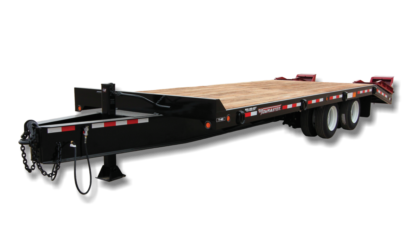

T-40 | 40LP

These premium Towmaster® deck-over trailers are built more durable and more stylish to provide a great looking trailer that will last a long time. They are great for hauling heavy equipment of all types. If you need a lower profile trailer, the T-40LP gives you an extra 2-inches and lower loading angle. Two-way spring-assist ramps and wood protectors are standard.

Available Deck Lengths

20′

Some Suggested Uses

Construction Icon ExcavatorConstruction Icon BackhoeConstruction Icon PayloaderConstruction Icon Ag EquipmentConstruction Icon DozerConstruction Icon GradersConstruction Icon Materials

Open PDF






Description

Standard Features:

  • Pintle hitch (adjustable height)
  • 2” nominal white oak wood deck
  • I-beam frame/tongue (formed)
  • 3″ Jr-Ibeam Crossmembers
  • 36” / 34″ deck height (empty)
  • 102” deck width
  • Hutchens 9700 suspension
  • Angle-iron beavertail
  • Angle-iron cleat ramps
  • Two-way spring-assist ramps
  • LED lights

Options:

  • Dual parking jacks
  • Additional deck length
  • Additional tie-downs
  • Rub rail with stake pockets
  • 12K electric winch
  • Spare tire and wheel mount
  • Spare tire and wheel
  • Tire upgrade (load range H)
  • Double-break beavertail (T-40 only)
  • Several beavertail options
  • Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal
  • Galvanizing

Detailed Specifications

SpecificationT-40T-40LP
Capacity (pounds)40,00040,000
GVWR (pounds)48,80048,600
GAWR (pounds)45,00045,000
Avg. Weight (pounds)8,8008,600
Load Width (in)102"102"
Deck Height (in) unloaded36"34"
Std. Hitch Size (in)3"3"
Tongue/Gooseneck Length (ft)5'-2"5'-2"
Safety Chain1/2 Gr. 801/2 Gr. 80
Parking Jack25K25K
Bolted-on Parking JackYY
Main BeamW16x26 BeamW10x26 Beam
Deck TypeDeck-OverDeck-Over
Deck Safety LipNN
Deck MaterialWhite OakWhite Oak
Added Stationary DeckN/AN/A
Ramp Size (ft x in)5'-0"x21"5'-0"x21"
Load Angle (degrees)1818
Dump AngleN/AN/A
Beavertail5'-0"5'-0"
Ramp Hold-UpN/AN/A
Ramp Spring Assist (off deck)Std.Std.
Ramp Spring Assist (off ground)Std.Std.
Tie DownsD-ringD-ring
No. of Tie Downs88
Axle Capacity22.5K22.5K
No. of Axles22
Axle Spread (in)49"49"
HubsOil BathOil Bath
Brake Size12.25"x7.5"12.25"x7.5"
Electric BrakesN/AN/A
Air BrakesStd.Std.
Wheels (size)17.5"17.5"
Wheel Bolt Pattern8-bolt8-bolt
Tires235/75Rx17.5235/75Rx17.5
Tire Load RatingHH
LightsLEDLED
Full Warranty1 Year1 Year
Frame Warranty10 Year10 Year
SpecificationT-40T-40LP
Capacity (pounds)40,00040,000
GVWR (pounds)48,80048,600
GAWR (pounds)45,00045,000
Avg. Weight (pounds)8,8008,600
Load Width (in)102"102"
Deck Height (in) unloaded36"34"
Std. Hitch Size (in)3"3"
Tongue/Gooseneck Length (ft)5'-2"5'-2"
Safety Chain1/2 Gr. 801/2 Gr. 80
Parking Jack25K25K
Bolted-on Parking JackYY
Main BeamW16x26 BeamW10x26 Beam
Deck TypeDeck-OverDeck-Over
Deck Safety LipNN
Deck MaterialWhite OakWhite Oak
Added Stationary DeckN/AN/A
Ramp Size (ft x in)5'-0"x21"5'-0"x21"
Load Angle (degrees)1818
Dump AngleN/AN/A
Beavertail5'-0"5'-0"
Ramp Hold-UpN/AN/A
Ramp Spring Assist (off deck)Std.Std.
Ramp Spring Assist (off ground)Std.Std.
Tie DownsD-ringD-ring
No. of Tie Downs88
Axle Capacity22.5K22.5K
No. of Axles22
Axle Spread (in)49"49"
HubsOil BathOil Bath
Brake Size12.25"x7.5"12.25"x7.5"
Electric BrakesN/AN/A
Air BrakesStd.Std.
Wheels (size)17.5"17.5"
Wheel Bolt Pattern8-bolt8-bolt
Tires235/75Rx17.5235/75Rx17.5
Tire Load RatingHH
LightsLEDLED
Full Warranty1 Year1 Year
Frame Warranty10 Year10 Year
