T-12DT

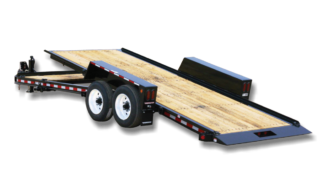

The Towmaster® drop-deck tilt trailers are popular with rental dealers and small contractors. There are no ramps to hassle with; simply tilt the deck and drive on or off. This trailer is built on our cold-formed I-beam tongue and main frame for tough durability. The tilt deck trailer features a single lever twin-latch system, knife-edge approach plate, rubber-ride axles and adjustable hitch. A deck cushion cylinder eases the deck back into transport position and prevents equipment from slamming the deck down.

Available Deck Lengths

14′ ⋅ 16′ ⋅ 18′

Some Suggested Uses

Construction Icon ForkliftConstruction Icon Scissor-Lift

Open PDF





Description

Standard Features:

  • Adjustable height bolt-on coupler
  • 2.5″ pintle
  • RV plug
  • One-piece cold formed frame rails
  • Integrated storage tray
  • 7K bolt-on top-wind parking jack (T-9DT & T-10DT)
  • 12K side wind jack (T-12DT)
  • Battery break-away kit with tow charger & test light
  • Safety chains with hooks
  • 82” load width, 19” deck height (fully loaded)

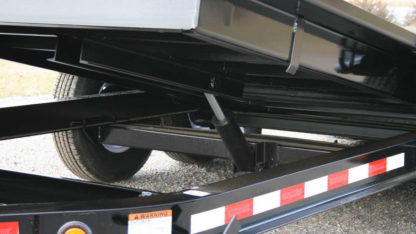

  • Deck cushion cylinder
  • Dual-point, single lever deck lock
  • 6” I-beam main frame
  • 3” channel crossmembers
  • 2” nom. white oak deck
  • D-ring tie-downs (4 per side)
  • 12 ga one-piece formed fender/panel
  • Rubber-ride suspension axles
  • (2) 7,000 lb. axles (4 wheels)
  • Tires – 235/85R16, load range F, 10-ply
  • 16” wheels, 8-bolt
  • Electric brakes
  • Forward self-adjusting brakes
  • EZ Lube hubs
  • Rubber grommet mounted LED lights
  • Sealed modular wiring
  • 13°/12°/11° load angle
  • Limited Lifetime Frame Warranty
  • One-Year full Warranty
  • 10 Year Suspension Warranty
  • Weatherproof registration holder
  • Two-component polyurethane primer and paint
  • Trailer color: Equipment Black

Options:

  • Hydraulic surge brakes
  • 3” pintle ring or 2-5/16” ball coupler
  • 4ft., 5ft., or 6ft. Stationary deck
  • Gooseneck hitch
  • 6-pole round electrical plug
  • Storage tray lid
  • Pallet fork holders
  • 8K electric winch
  • Rub rail & stake pockets
  • Additional tie-downs
  • Spare tire and wheel mount
  • Spare tire and wheel
  • “SL” ramp option for hauling scissor lifts
  • Color options: Construction Yellow, Equipment Red, Blue, Charcoal
  • Galvanizing
