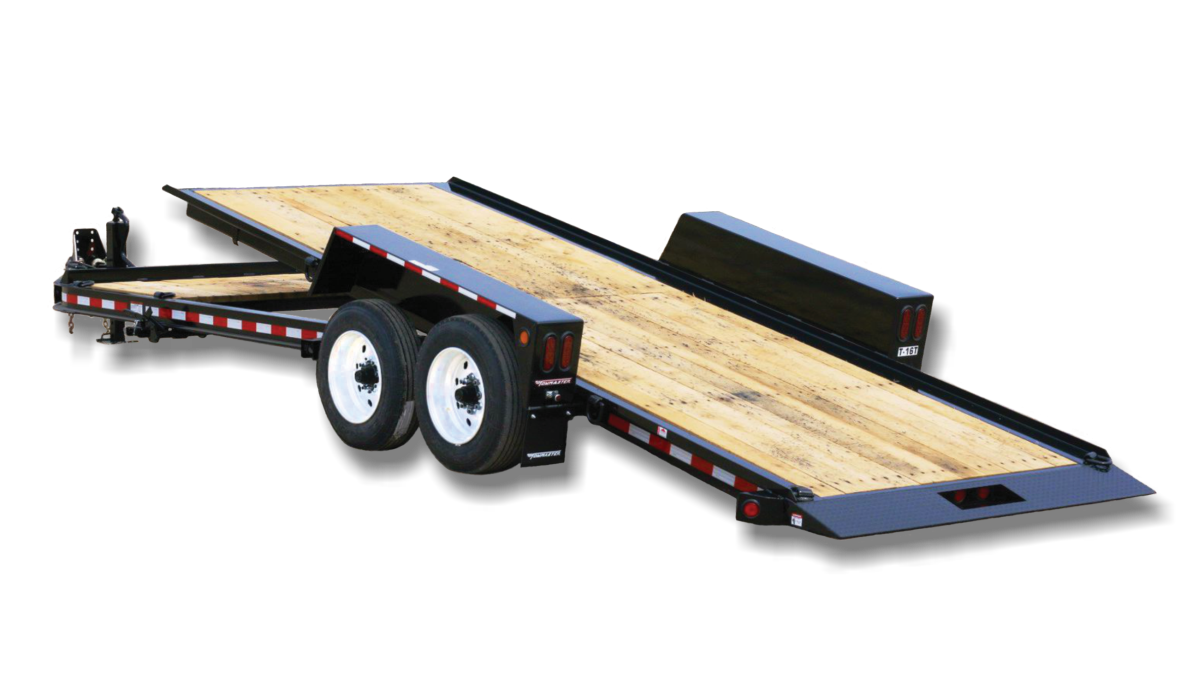

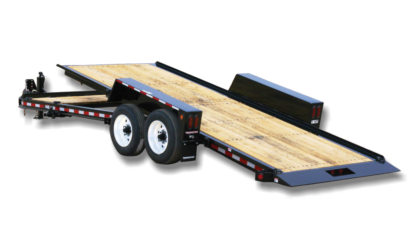

T-14DT | 16DT

The Towmaster® drop-deck tilt trailers are popular with rental dealers and small contractors. There are no ramps to hassle with; simply tilt the deck and drive on or off. This trailer is built on our cold-formed I-beam tongue and main frame for tough durability. The tilt deck trailer features a single lever twin-latch system, knife-edge approach plate, rubber-ride axles and adjustable hitch. A deck cushion cylinder eases the deck back into transport position and prevents equipment from slamming the deck down.

Available Deck Lengths

16′ ⋅ 18′


SUGGESTED USES:

Small Skid LoadersSmall RollersTowmaster trailer usage; compact skid-loaderTowmaster trailer usage, material hauling.Compact TractorUTVsTowmaster trailer usage; mower.Scissor LiftsTowmaster trailer use image, and more.

Download PDF:

T-14DT_16DT



Product Description

Standard Features:

  • Pintle hitch (adjustable height)
  • Battery break-away with tow charger
  • 2” nominal white oak wood deck
  • Deck cushion cylinder
  • Single lever, dual deck latch
  • 6” I-beam frame/tongue (formed)
  • 3″ Channel Crossmembers
  • 22.5” deck height (empty)
  • 82″ between fenders (T-14DT)
  • 80” between fenders (T-16DT)
  • Rubber torsion axles
  • Heavy-duty Towmaster fenders
  • Knife edge approach

Options:

  • 4-foot stationary deck
  • A-Frame gooseneck
  • Storage tray lid
  • Pallet fork holders
  • 8K electric winch
  • Additional tie-downs
  • Spare tire and wheel mount
  • Spare tire and wheel
  • “SL” ramp option for hauling scissor lifts
  • Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal
  • Galvanizing
SpecificationT-14DTT-16DT
Capacity (pounds)14,00016,000
GVWR (pounds)18,60020,600
GAWR (pounds)14,00014,000
Avg. Weight (pounds)4,2004,200
Load Width (in)82"80"
Deck Height (in) unloaded21.5"21.5"
Std. Hitch Size (in)3"3"
Tongue/Gooseneck Length (ft)5'-0"5'-0"
Safety Chain3/8 Gr. 703/8 Gr. 70
Parking Jack12K12K
Bolted-on Parking JackYY
Main Beam6" I-Beam6" I-Beam
Deck TypeDrop-Deck TiltDrop-Deck Tilt
Deck Safety LipYY
Deck MaterialWhite OakWhite Oak
Added Stationary DeckOO
Ramp Size (ft x in)N/AN/A
Load Angle (degrees)1111
Dump AngleN/AN/A
BeavertailN/AN/A
Ramp Hold-UpN/AN/A
Ramp Spring Assist (off deck)N/AN/A
Ramp Spring Assist (off ground)N/AN/A
Tie DownsD-ringsD-rings
No. of Tie Downs88
Axle Capacity7.2K8K
No. of Axles22
Axle Spread (in)34"34"
HubsEZ-LubeEZ-Lube
Brake Size12.25" x 2.5"12.25" x 3.38"
Electric BrakesStd.Std.
Air BrakesN/AN/A
Wheels (size)17.5"17.5"
Wheel Bolt Pattern8-bolt8-bolt
Tires215/75Rx17.5215/75Rx17.5
Tire Load RatingHH
LightsLEDLED
Full Warranty1 Year1 Year
Frame Warranty10 Year10 Year
